| Model No | SSV0308GNBIR 新产品 | ||
| Image Format Cover | 1/3" ～ 1/4" | ||
| 焦点距离 | 3.0 ～ 8.0 mm | ||
| Zoom Ratio 倍数 | 2.0 倍 | ||
| MAX光圈比率 | 1 : F1.2 | ||

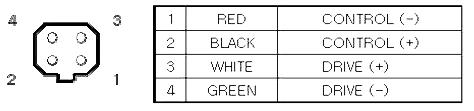

| Iris光圈 | 操作 | 直流驱动自动光圈 | |
| Iris Range | F1.2 ～ 360 | ||
| 速度 | * * * | ||
| 输入电压 | DC 8 ～ 16V Max. 30mA | ||
| 灵敏度调整 | * * * | ||
| Focus 焦点 | 手调 | ||
| ZOOM 变焦 | 手调 | ||
| Angle Field of View (D×H×V) |
1/4 inch | Wide | 78.0° ×63.9° × 48.7° |
| Tele | 33.2° ×26.6° × 20.0° | ||
| 1/3 inch | Wide | 97.5° ×82.4° × 63.9° | |
| Tele | 43.9° ×35.4° × 26.6° | ||
| 2/3 inch | Wide | * * * | |
| Tele | * * * | ||
| 1 inch | Wide | * * * | |
| Tele | * * * | ||
| Minimum Object Distance | 0.2 m | ||
| Back Focal Length | 7.3 ～ 13.9 mm | ||
| Effective Diameter | Front | φ27.8 mm | |
| Rear | φ8.5 mm | ||
| Filter Screw size | * * * | ||
| Mount / Flange Back | CS | ||

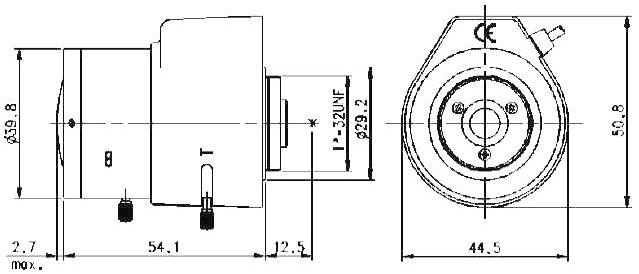

| Mechanical Dimension (W×H×L) | φ39.8mm × 50.8mm × 56.8mm | ||
| Weight | 85g | ||
| Application Temperature Range | -10°C ～ +50°C (+14°F ～ +122°F) | ||
| Comments | IR Compatible lens | ||
