| Model No | SSV2713GNBIR | ||
| Image Format Cover | 1/3" ～ 1/4" | ||
| 焦点距离 | 2.74～12.7 mm | ||
| Zoom Ratio 倍数 | 4.6 倍 | ||
| MAX光圈比率 | 1 : F2.5 | ||
| Iris光圈 | 操作 | 直流驱动 | |
| Iris Range | F1.3～F360C | ||
| 速度 | 2.0 s | ||
| 输入电压 | * * * | ||
| 灵敏度调整 | * * * | ||
| Focus 焦点 | 手调 | ||
| ZOOM 变焦 | 手调 | ||
| Angle Field of View (D×H) |
1/4 inch | Wide | 73.1° × 54.6° |
| Tele | 17.1°× 15.8° | ||
| 1/3 inch | Wide | 98° ×77..3° . | |
| Tele | 22°×16.5° | ||
| 2/3 inch | Wide | * * * | |
| Tele | * * * | ||
| 1 inch | Wide | * * * | |
| Tele | * * * | ||
| Minimum Object Distance | 0.3 m | ||
| Back Focal Length | 2.74～12.70mm | ||
| Effective Diameter | Front | φ25.6mm | |
| Rear | φ8.6mm | ||
| Filter Screw size | * * * | ||
| Mount / Flange Back | CS / 12.5mm | ||

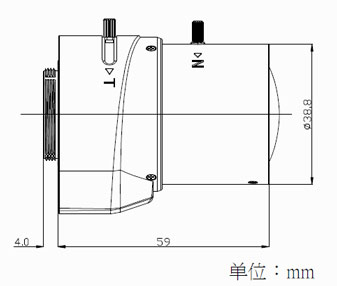

| Mechanical Dimension (W×H×L) | φ38.8mm × 44mm × 59mm | ||
| Weight | 78.0g | ||
| Application Temperature Range | -10°C ～ +50°C (+14°F ～ +122°F) | ||
