SSV0550GNB|精工变焦距镜头|AVENIR|SSV0550|--020-38601810

SSV0550GNB日本精工镜头

ssv0550gnb

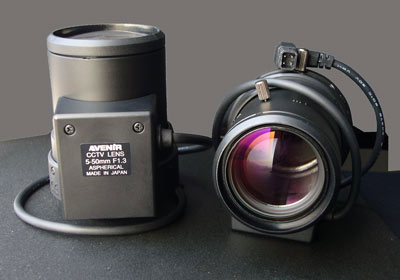

SSV0550GNB日本精工镜头

侧面看玻璃反射白光，正面看进镜头，玻璃反射紫红色

Model No			SSV0550	SSV0550G	SSV0550GNB
Image Format Cover			1/3" ～ 1/4"
焦点距离			5 ～ 50 mm
MAX光圈比率			1 : 1.3
Zoom Ratio 变焦倍数			10.0 倍
Iris光圈	Control Method		手动	视频驱动	直流驱动
	Iris Range		F1.3 ～ Close	F1.3 ～ 360	F1.3 ～ 360
	速度		* * *	Approx. 1.5 sec	* * *
	Input Voltage & Current		* * *	DC 8 ～ 16V Max. 30mA	* * *
	Sensitivity Adjustment		* * *	0.5 ～ 1.0VP-P	* * *
Focus　焦点	控制方式		手调
Zoom　变焦	控制方式		手调
视角 (D×H×V)	1/4 inch	Wide	50.2° × 40.1° ×30.1 °
		Tele	5.2° ×4.2 ° × 3.2°
	1/3 inch	Wide	66.8° × 53.5° × 40.1°
		Tele	6.9° × 5.6° × 4.2°
	1/2 inch		* * *
	1 inch		* * *
Minimum Object DistanceMIN可视距离			0.3 m
Back Focal Length　后焦长度			9.61 ～ 13.20 mm
Effective Diameter	Front　前部		φ30.0 mm
	Rear　后部		φ9.8 mm
Filter Screw size			* * *
Mount			CS / 12.5mm
Mechanical Dimension(D×L)机械尺寸			φ39.5mm × 55.5mm	φ39.5mm × 54.9mm × 55.5mm
Weight重量			88.0 g	95.5 g	93.0 g
应用温度环境			-10°C ～ +50°C (+14°F ～ +122°F)

ssv0550 　　 SSV0550GNB
